- Available brand
-
Century M65
- Boom
- 130,000 lbs.
- Max Hook Height
- 532"
- Turret Travel Length
- 7.7'

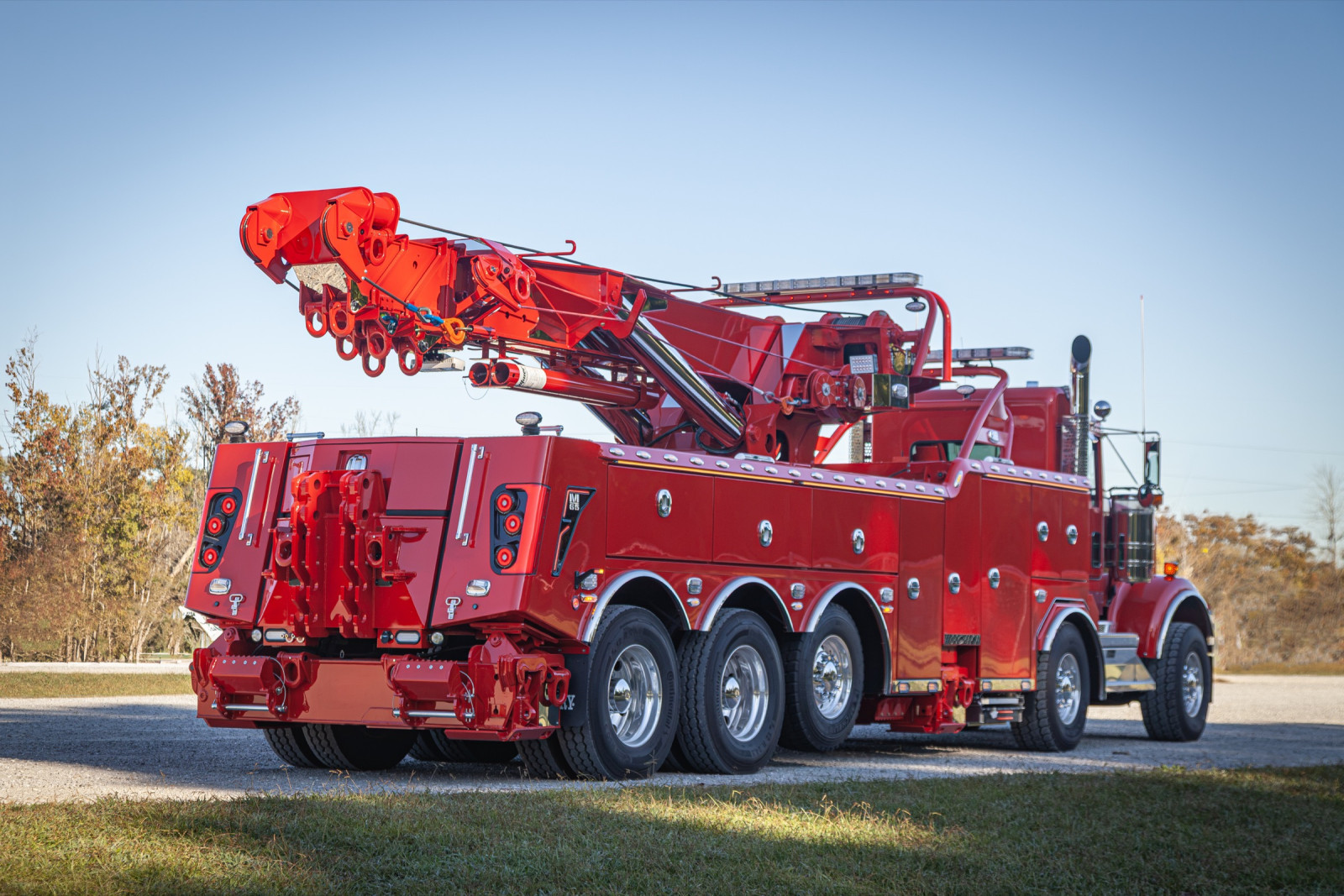

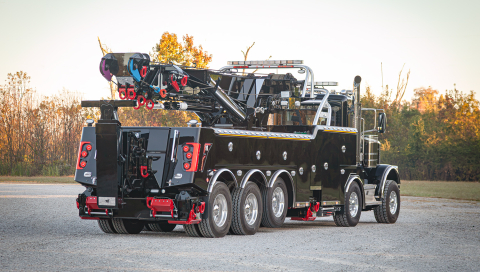

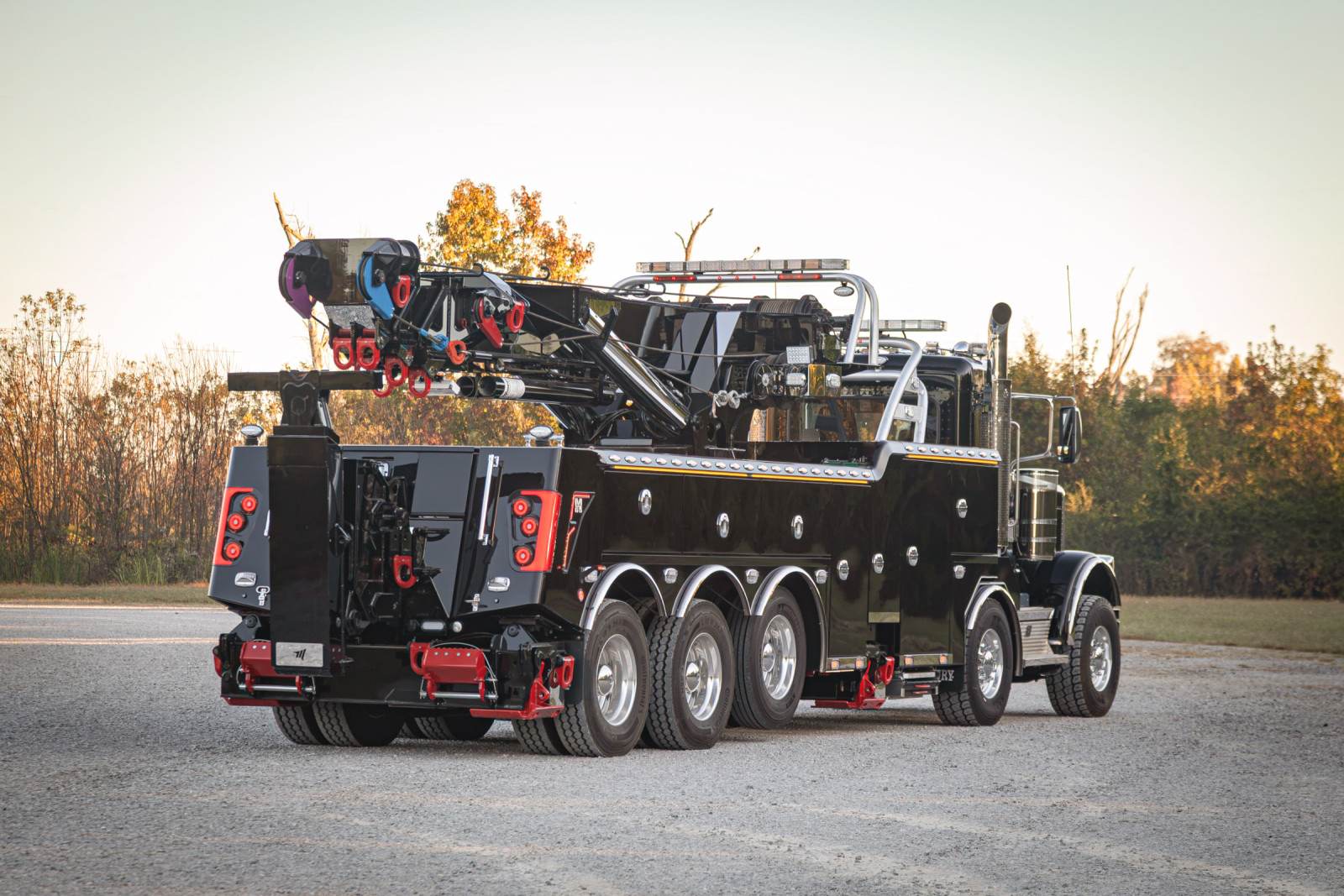

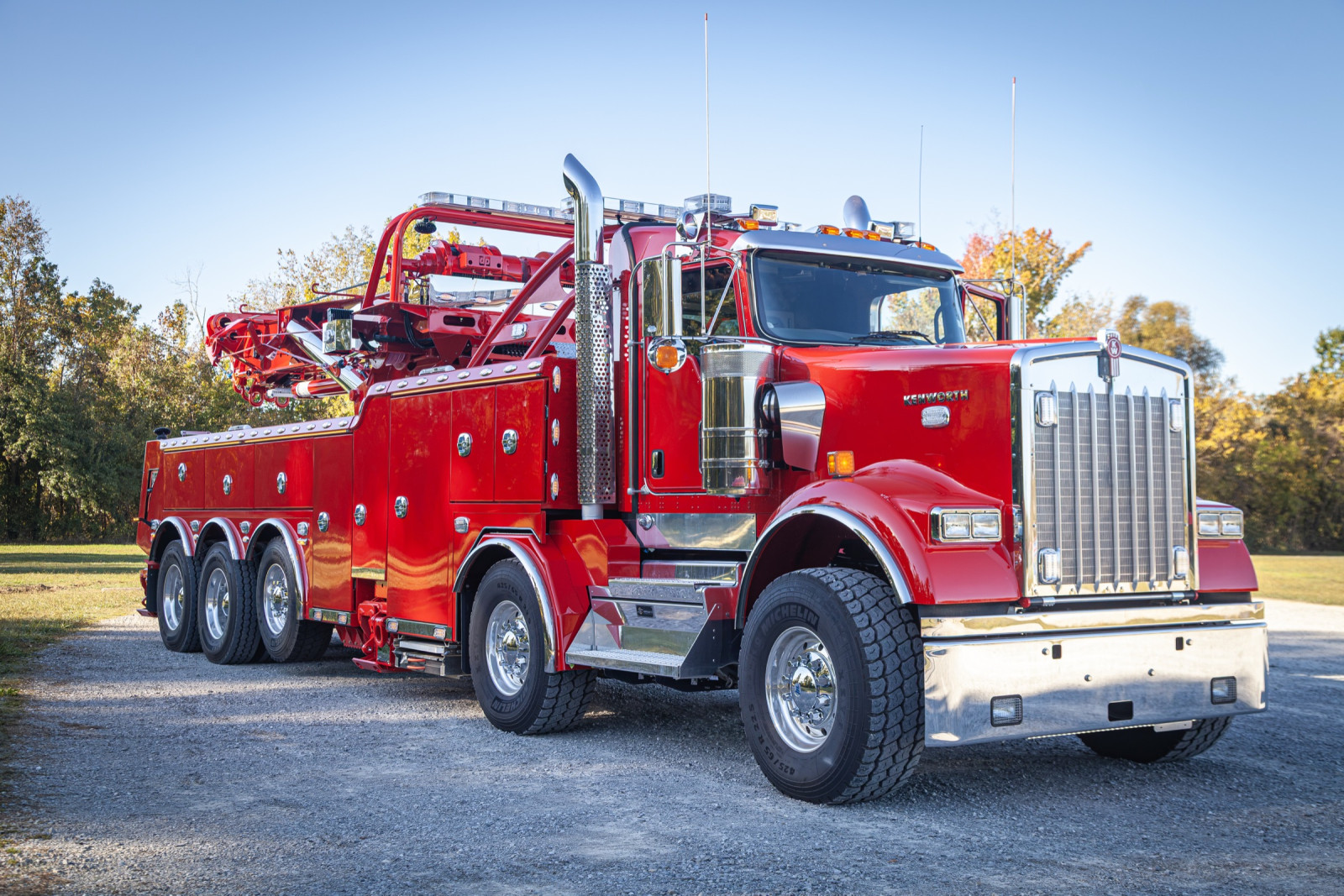

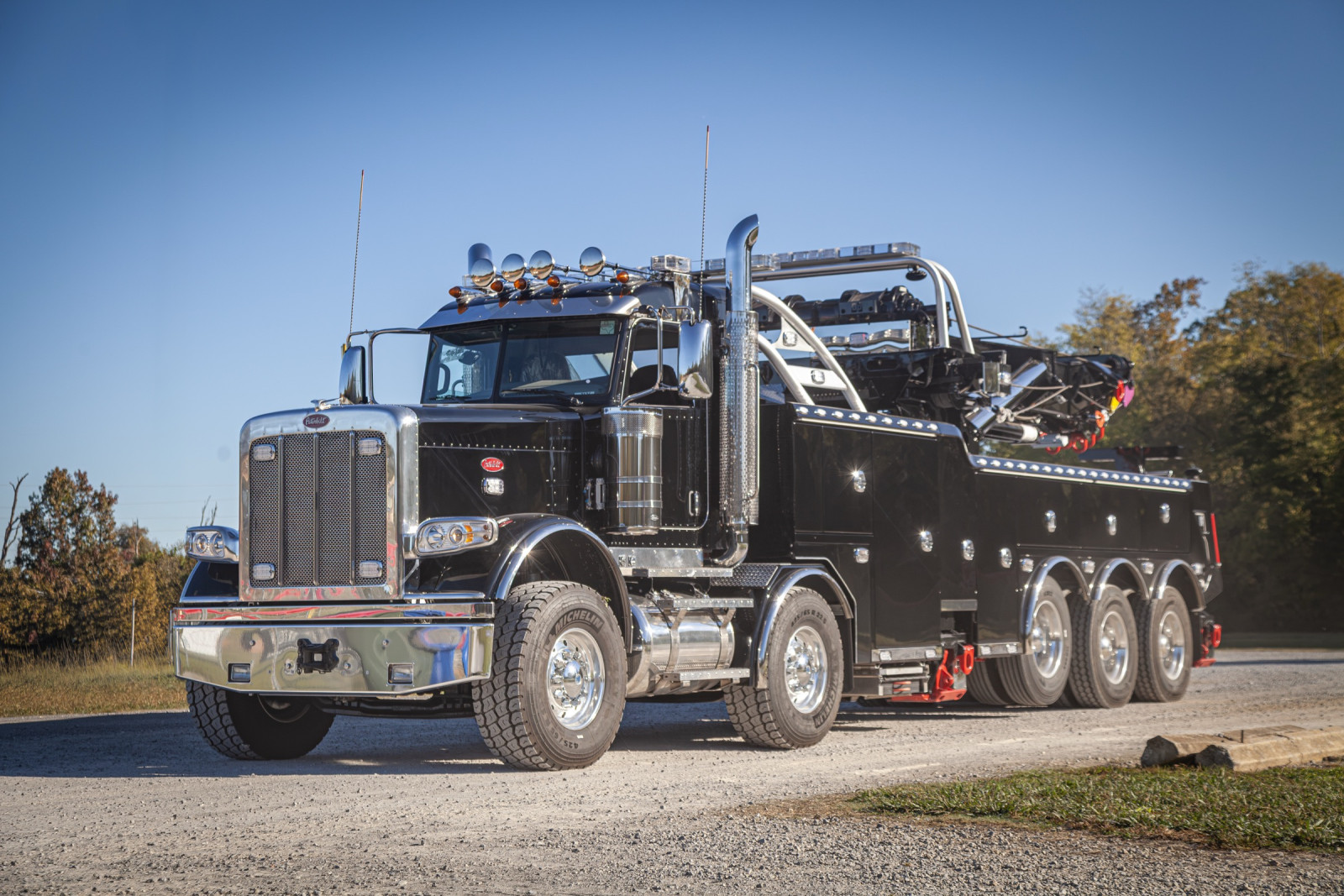

The Century M65. The latest rotator developed by the world's largest manufacturer of towing and recovery equipment.

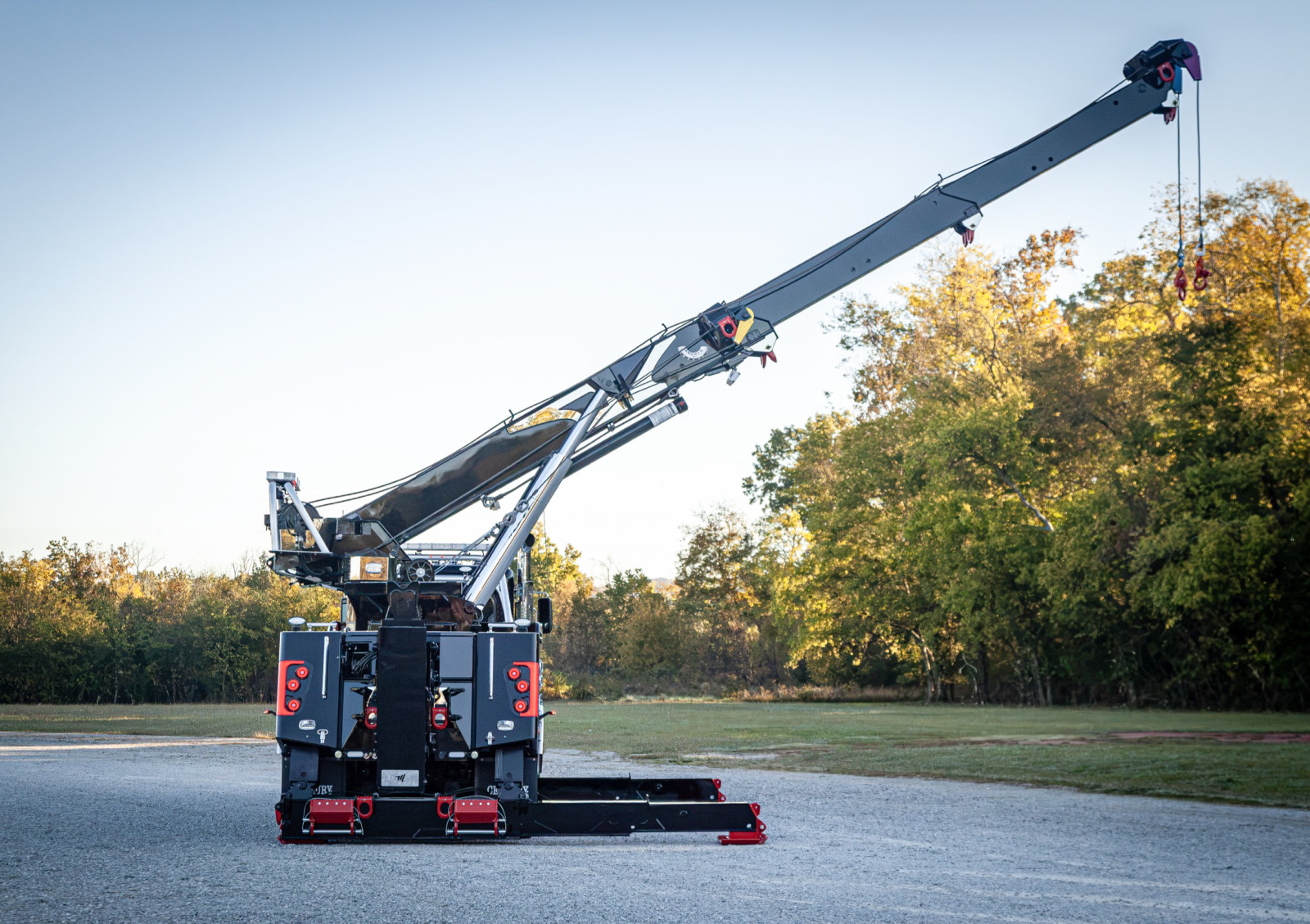

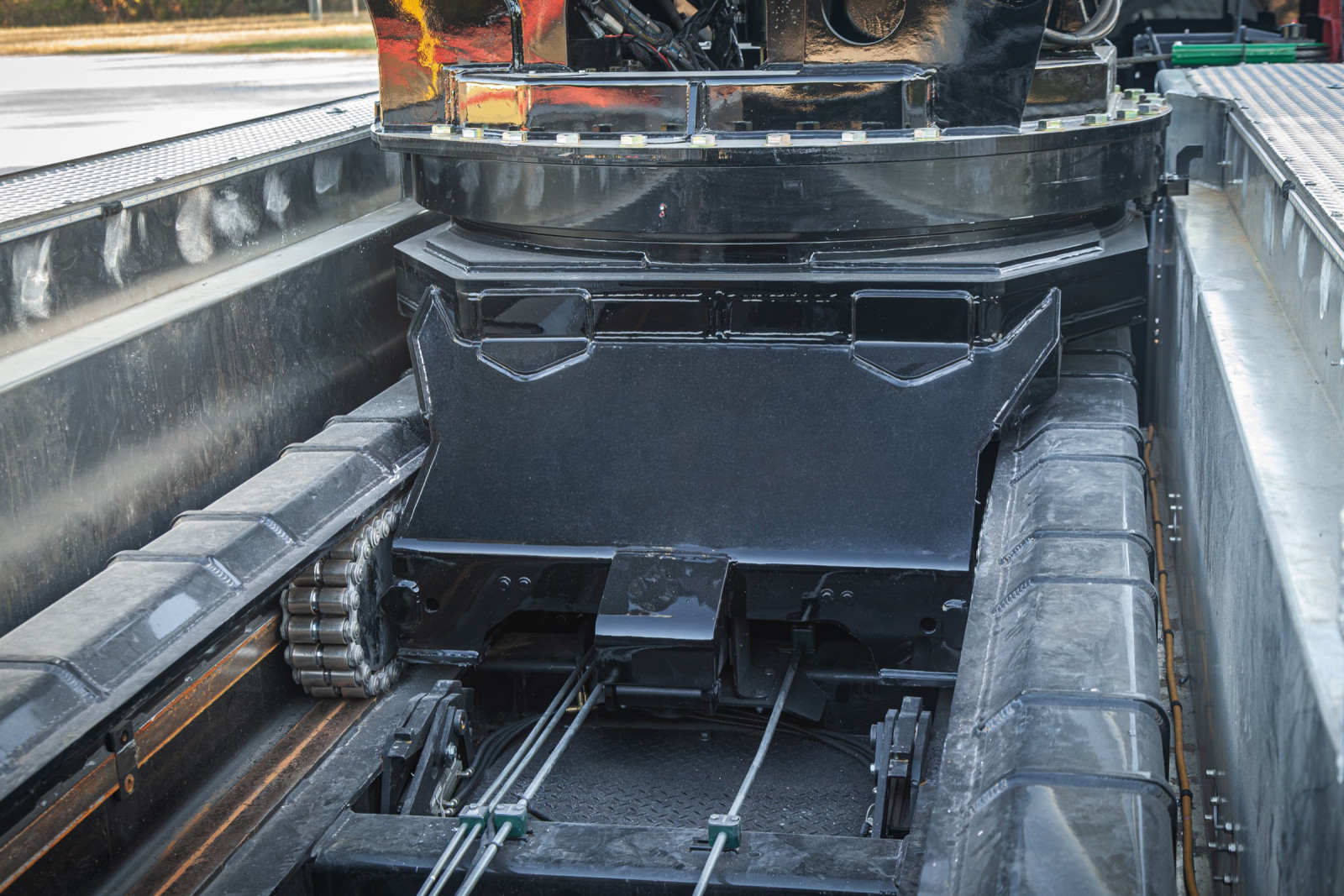

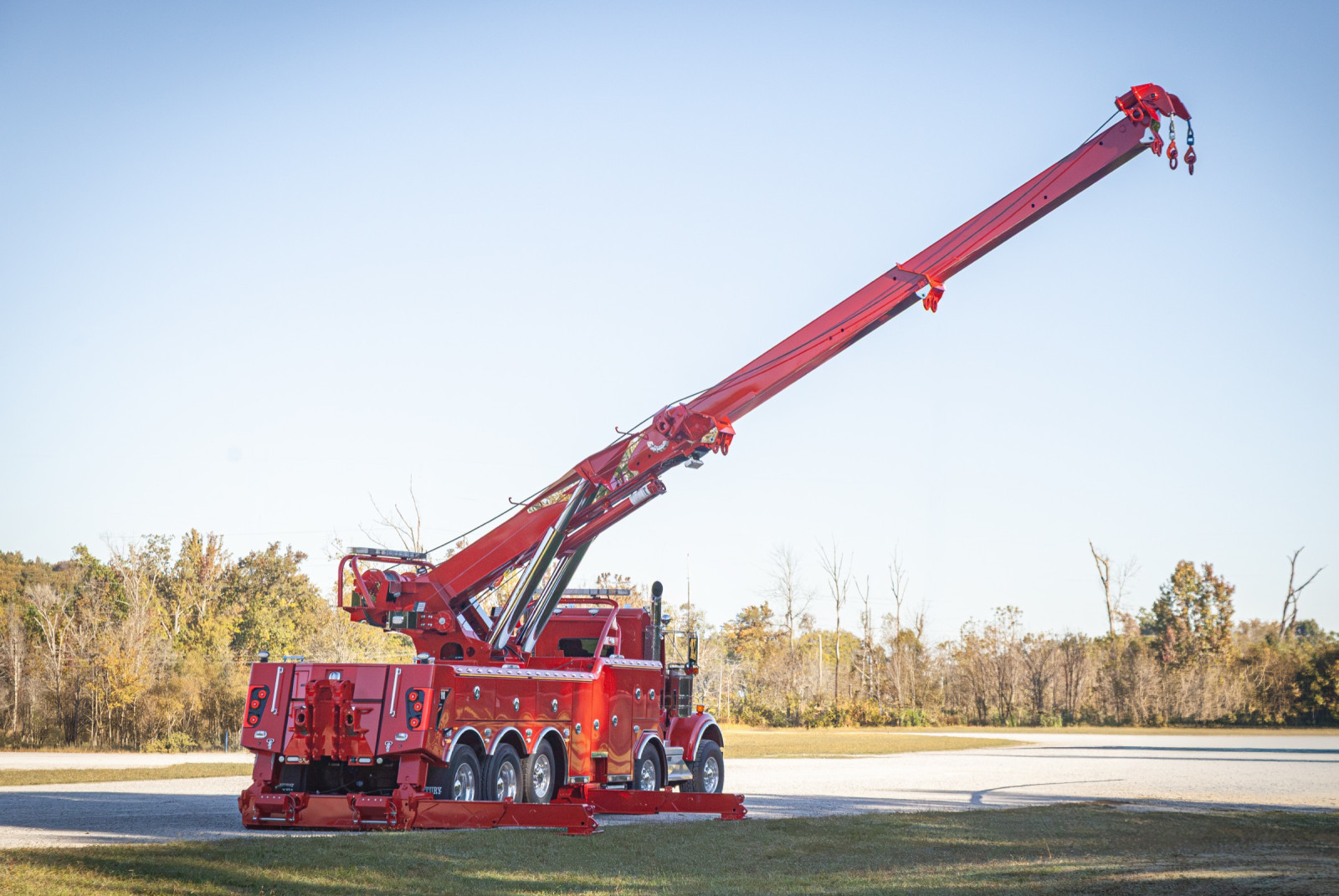

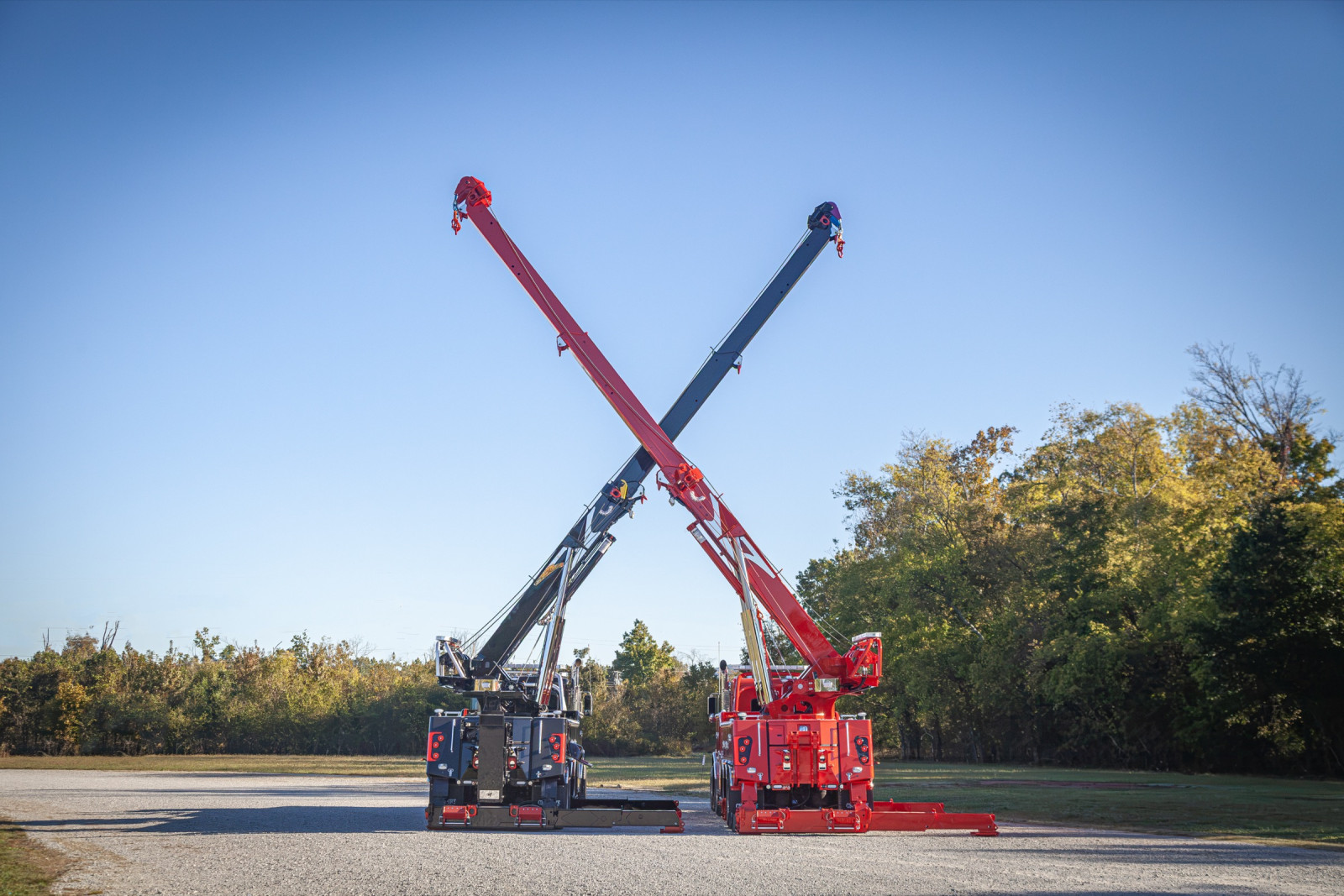

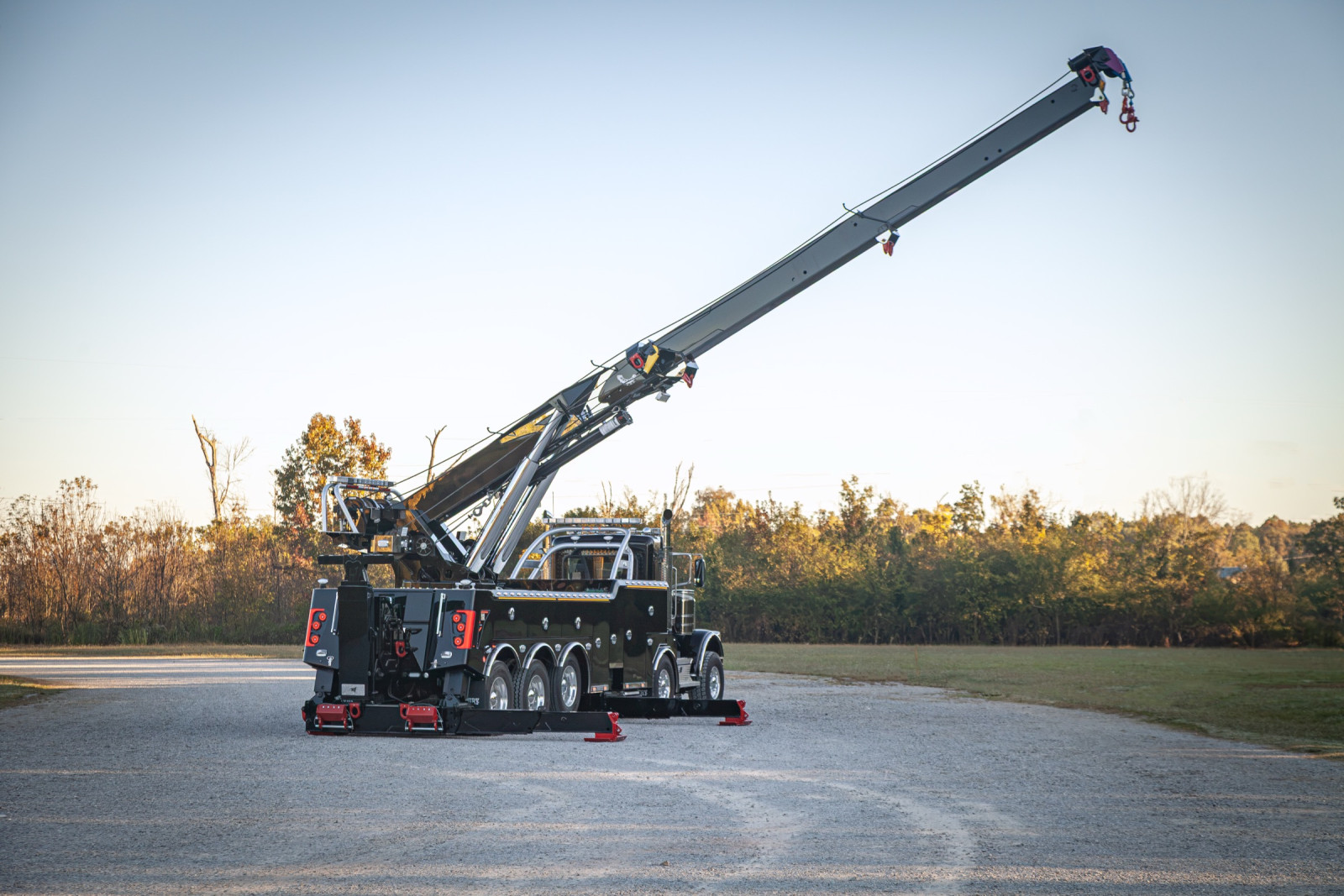

The M65 has a maximum boom height over 44 feet! The outrigger stance of the M65 is over 23 feet and the turret travel length is over 7 feet. This brings the total work area for the M65 to 5,380 sq.ft.
The Century M65 also features our patented Raptor™ Control™ System standard which includes wrecker controls extendible away from the vehicle to enhance operator sight-lines during use, and an information screen with load sensing functions.
The M65 has a maximum boom height over 44 feet! The outrigger stance of the M65 is over 23 feet and the turret travel length is over 7 feet. This brings the total work area for the M65 to 5,380 sq.ft.
The Century M65 also features our patented Raptor™ Control™ System standard which includes wrecker controls extendible away from the vehicle to enhance operator sight-lines during use, and an information screen with load sensing functions.
Features
Standard Features
| 102" Wide Aluminum Modular Body | Hydraulic Pump |
| (2) 50,000 lbs. 2-Speed Winches | Dual Raptor Control Stations |
| Large Forward Compartments | D-Rings Mounted On All 3 Boom Stages |
| Double Panel Doors | 180" C.B. |
| Backlit Chrome Double Action Latches | Raptor® Control® System |
| LED Federal #138 Lighting | Compartments Over the Wheel Well |
| Rubber Fenderettes | Door Checks w/Remote Lock/Unlock |
| Chain Rack | LED Toolbox Lighting |
| Rubber Isolators | Mud Flaps |
| Tailboard Mounted D-Rings | Attachment Storage |
| Rear Air & Electrical Hook-ups | Rigid Torsional Resistant Mounting Frame |
| 360° Continuous Boom Rotation | Two Rear Outrigger Spade Attachments |
| Hydraulic Reservoir with an Oil Level Sight Gauge, Tank Drain, and Access Panel | Power Elevation |
| Nylatron Boom Slide Pads | Proportional 3-Stage Power Boom Extension |
| Winch Air Free Spool | Holding Valves for Boom Elevation & Extension |
| Rear Mounted 3-Stage H-Beam Outriggers with (280" Stance) | Cable Tensioners |
| Boom Angle Indicator |
Optional Features
| Custom Front Tunnel Box | Dual 22,000 lbs. Turret Winches |
| 30,000 lbs. Drag Winch Pass. Side | Scanreco Raptor Remote |
| Chain Package | Endless Loop Sling Package |
| Alloy Foundry Hooks | Alloy Shackles |
| Alloy Snatch Blocks | Snatch Block Holders |
| Spreader Bar | Dual Rear Cameras & Monitor |
| Air Shift PTO | Hand Rail |
| Manual Override Control for PTO | Light Bar |
| Flasher Kit | Flashing Warning Door Light Kit |
| Boom Scene Lights | LED Work Lighting |
| Wireless Tow Light Bar | Folding Step-Ladder |
| M65 Shackle Adapter | (Main, 2nd, 3rd Stage) |
| M65 Rigging Kit | MatJack High Pressure Kit |
| Rotator Choker and Storage Kit | Seamless Tool Box Matting |
| DuraGlow Kit | Turret Wing and Light Brac |
Raptor™ Control Package
The patented Raptor™ Control Package* is standard on the Century M65. The operator can easily maneuver through operations at the unit control station, which can be extended away from the vehicle to enhance operator sightlines during use, or on the wireless remote. Joystick controllers operate boom and winch functions and a display screen offers a variety of information including load sensing, free spool and 2-speed operations.
* USPN 9440577, D751,963 S and D752,492 S
Specifications
Boom
| Retracted 30° | 130,000 lbs. | |
|---|---|---|
| Extended 30º | 29,000 lbs. | |
| Boom Angle | 60º | |
| Hydraulic Boom Extension | 259.8" | |
| Max Hook Height | 532" |
Winch Rating & Wire Rope
| Winch Capacity | 50,000 lbs. |
|---|---|
| Winch Type | Dual 2-Speed Planetary |
| Wire Rope Specifications | 3/4" dia. x 250' |
| Wire Rope Type | 6x37 IWRC XIPS |
Optional Drag & Auxiliary Winch Ratings
| Component | 30K - Drag | Dual 22K Turret |
|---|---|---|
| Winch Capacity | 30,000 lbs. | Dual 22,000 lbs. |
| Winch Type | Planetary | Planetary 2-Speed |
| CP8 8 x 31 | 5/8” x 200’ | 5/8” x 200’ |
| Wire Rope Type | 6x37 IWRC XIPS | 6x37 IWRC XIPS |
| Air Cable Tensioner | Air | Air |
Underlift
| Extended | 17,000 lbs. @ 130 13/16" |
|---|---|
| Retracted | 55,000 lbs. @ 70 7/16" |
| Tilt Arc | 0º |
| Tow Rating | 120,000 lbs. |
Recommended Minimum* Chassis Specifications
| Steer Axle | 20,000 lbs. |
| Second Steer Axle | 20,000 lbs. |
| Lift Axle | 18,500 lbs. |
| Rear Axle | 52,000 lbs. |
| Maximum Axle Spacing | 56" |
| Clear C.A. / C.B. | 250" |
| Minimum Frame from Center of Rear Axle | 35" |
| RBM | 5,400,000” / lbs. |
* Recommended or are minimums, heavier specifications may be required depending on chassis and equipment weight. Always consult your local distributor for additional information.
